Description

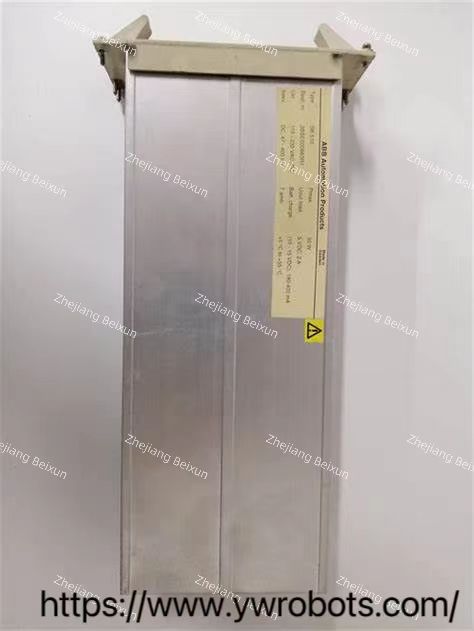

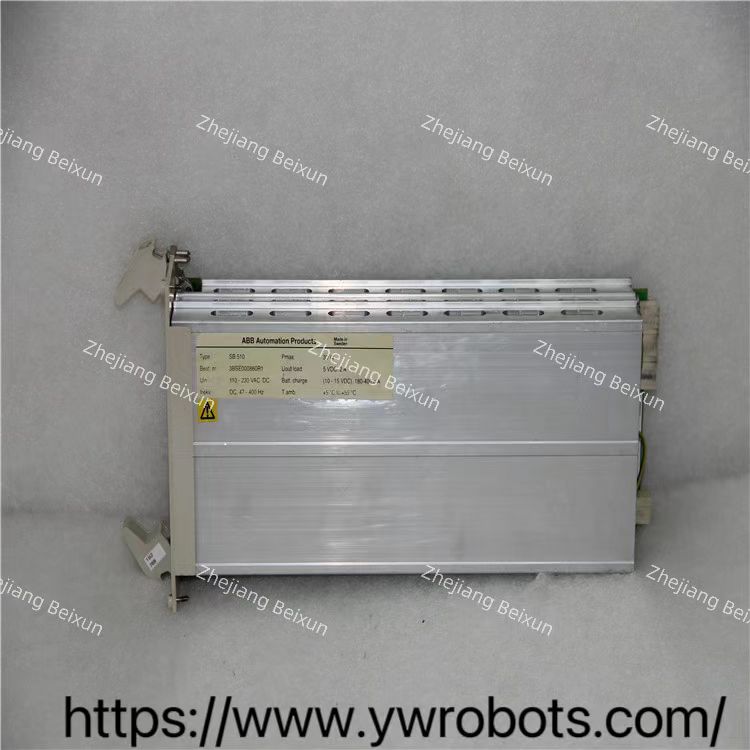

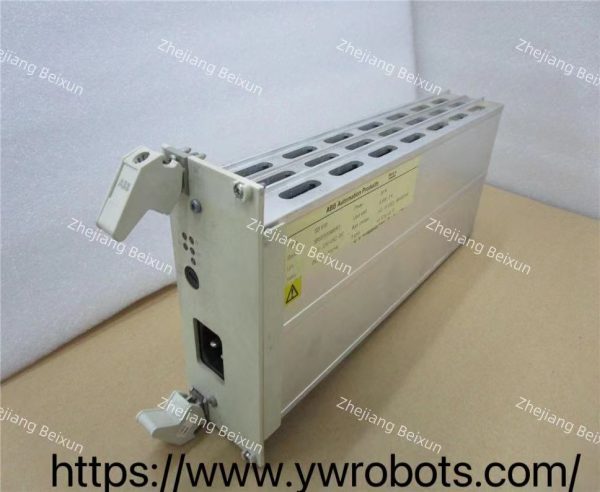

The SB510 servo drive module is a device used to control the movement of servo motors and is widely used in the field of industrial automation. The main function of this module is to receive control signals and convert them into motion control signals of the motor, thereby achieving precise control of the motor. Servo drive modules usually consist of control circuits, power circuits and protection circuits. The control circuit is the core part of the SB510 servo drive module, responsible for receiving the command signal from the controller and converting it into a current or voltage signal suitable for the motor. The control circuit usually uses a microprocessor or a dedicated chip to control parameters such as the speed, position and acceleration of the motor through algorithms. In addition, the control circuit can also realize closed-loop control, adjust the motion state of the motor through feedback signals, and improve the accuracy and stability of control. The power circuit is a key component of the SB510 servo drive module and is responsible for converting the signal output by the control circuit into a high voltage and high current signal suitable for the motor.

Power circuits usually use power transistors, power modules or power integrated circuits to provide sufficient power output to meet the movement needs of the motor. At the same time, the power circuit also needs to have overload protection, short-circuit protection and other functions to ensure the safe operation of the motor and driver. The protection circuit is an important part of the SB510 servo driver module. It can protect the motor and driver from damage caused by excessive voltage, excessive current, excessive temperature, etc. Protection circuits usually include overvoltage protection, overcurrent protection, overheating protection and other functions. When an abnormality is detected, the power supply will be cut off or other measures will be taken in time to protect the safety of the motor and driver. In general, the SB510 servo drive module is an important control device with the characteristics of high precision, high efficiency, fast response and programmability, and is widely used in the field of industrial automation. With the continuous development of technology, the performance and functions of servo drive modules will continue to improve, providing more reliable and efficient solutions for motion control in various fields.
