Description

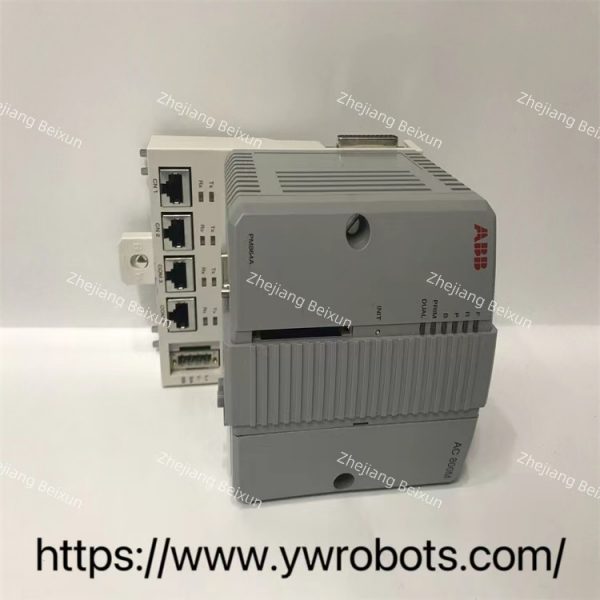

PM864AK01-eA is a redundant processor unit.
Designed for a variety of industrial automation applications. It provides advanced control capabilities and reliable performance, making it suitable for harsh industrial environments.
Product parameters:
Input voltage: 24vdc
Communication interface: Ethernet, RS485
Specification:
Processor type: ARM Cortex-A8
Memory: 8mb RAM, 16mb Flash
The control unit PM861AK01 is an important component in the Compact Products 800 series. It is a modular controller based on rail mounting. It includes a CPU, communication module, power module and a series of accessories. It integrates a variety of communication functions. It can achieve full redundancy and support a wide range of I/O signals, including intrinsically safe signals in hazardous areas.

Technical description of PM864AK01-eA:

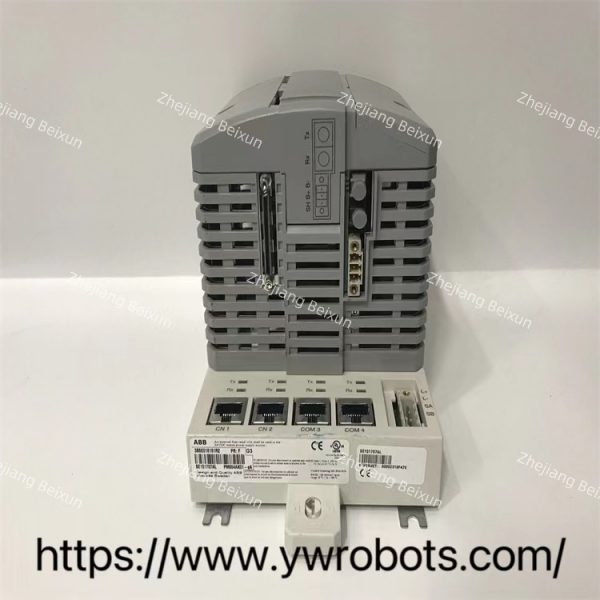

The controller backplane has two RJ45 Ethernet ports (CN1, CN2) for connection to the control network, and two RJ45 serial ports (COM3, COM4), where COM3 is the RS-232C port with modem control signals, and COM4 is isolated and used to connect to the configuration tool.
The controller supports CPU redundancy for high availability (CPU, CEX bus, communication interfaces and S800 I/O).

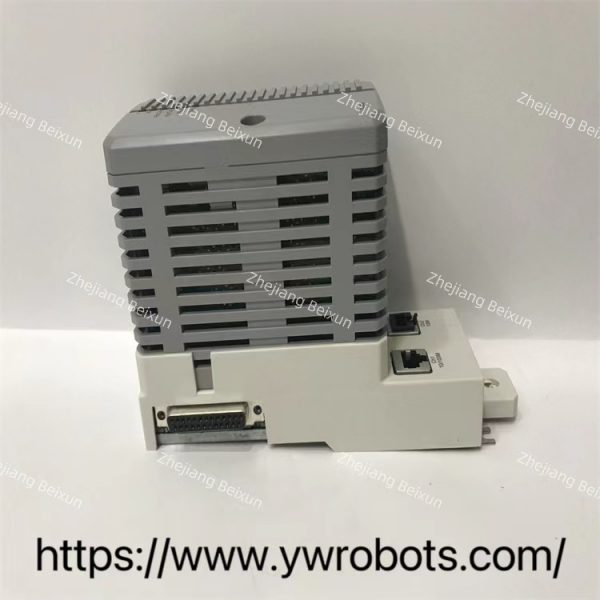

The base plate of the controller also has two slide & lock mechanisms for simple DIN rail attachment/unloading procedures.
All base plates have unique Ethernet addresses, and each CPU has a hardware identification.
Industrial automation control: It can be used in industrial process control, production line automation, machinery control and other fields to achieve various automation control tasks.
