Description

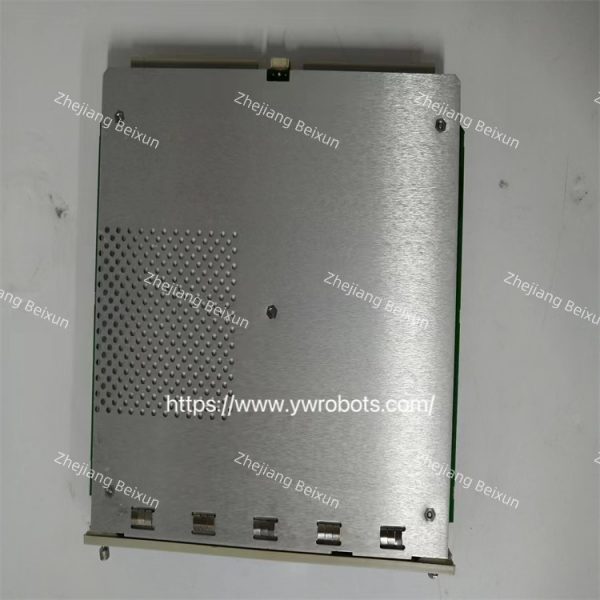

Product details: 3500/22M 138607-01 BENTLY transient data interface module
This module is the interface between the 3500 Monitoring System and compatible software such as System 1 Condition Monitoring and Diagnostic Software and 3500 System Configuration Software.

It can continuously collect steady-state and transient waveform data, which is very useful for analyzing the operating status of mechanical equipment and diagnosing potential problems.

Technical features:

1. Data acquisition: Able to continuously collect steady-state and transient waveform data.
2. High-speed data transmission: Through Ethernet connection, the collected data can be quickly transmitted to the host computer software to ensure the real-time and accuracy of the data.
3. Compatibility and scalability: Compatible with 3500 monitoring system and Bentley System 1TM machinery management software, it can be easily integrated into existing industrial automation systems.
4. Integrated functions: Combines the functions of the 3500/20 Rack Interface Module (RIM) with the data collection functions of communication processors such as TDXnet.
5. Dynamic Data Capture: Capture dynamic and high-resolution transient data using optional channel-enabled disks.

Product details parameters: 3500/22M 138607-01 BENTLY transient data interface module
1. Power consumption: 10.5 watts
2. Network interface: USB-B, 10Base-T or 100Base-TX adaptive Ethernet, 100Base-FX optical fiber Ethernet
3. Reset function: with rack reset button
4. Indicator: LED indicator with pre-alarm and post-alarm data
5.I/O module: with relay
6. Slot location: must be located in the first slot of the 3500 frame (next to the power module)
